BUTT WELD FITTINGS
Product Overview
Saakar Solution offers premium butt weld fittings crafted from high-grade stainless steel for seamless piping solutions in industrial applications.
Butt weld fittings provide superior strength and durability, ideal for high-pressure systems in oil and gas, chemical processing, and water treatment sectors. Available in various sizes, schedules, and grades like 304, 316L, and duplex, these fittings ensure leak-proof joints and corrosion resistance.

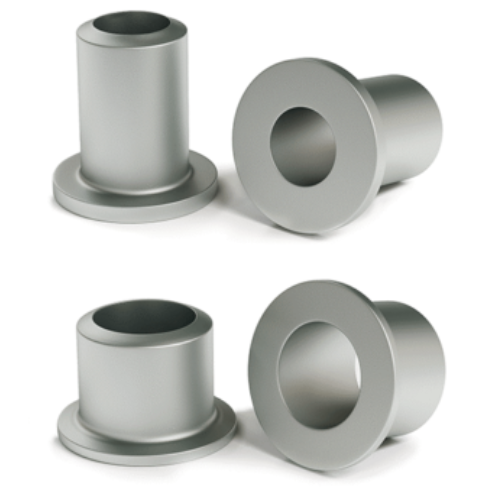

Stub end
The Stub End, which essentially a length of pipe, which has one end that is flared outwards and the other end prepared to be welded to pipe of the same Nominal Pipe Size. Stub End comes in two types – Long Stub End & Short Stub End.
Sizes: 15NB to 200NB (Nominal Bore)
Thickness: Sch 10, Sch 40, Sch 80 (Seamless and ERW)
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)

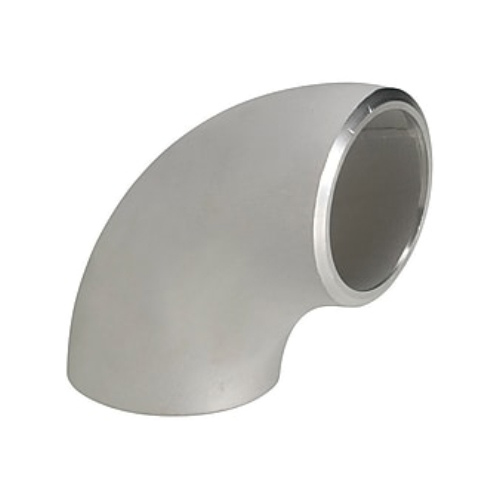

Elbow
A 45° / 90° / 180° Butt weld Elbow helps create full penetration weld on both ends without any extra preparation needed for the butt weld fitting. A short radius elbow has pipe bend that is equal to the size of the pipe while a long radius elbow will have a pipe bend that will be 1.5 times the size of the pipe.
Sizes: 15NB to 300NB (Nominal Bore)
Thickness: Sch 10, Sch 40, Sch 80, Sch 160 (Seamless and ERW)
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)

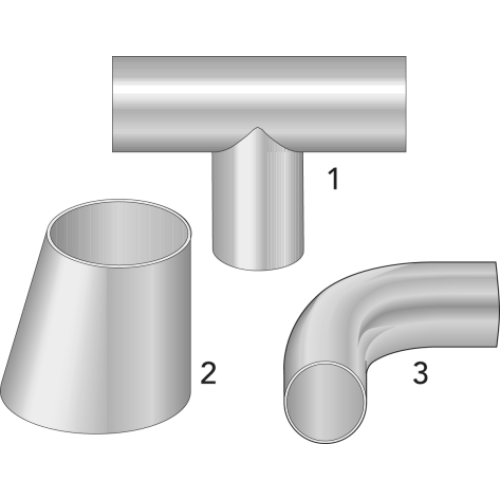

Dairy Fittings
Dairy Fittings has higher carbon substance that gives more prominent quality and warm treatment capabilities. They are having a few incredible features like rough in development, supreme tensile quality, high carbon substance, and more. It finds a massive application in car and designing sectors. The proffered fittings are requested for heavy-duty cutting tools and precision blanking instruments for high-strength materials.
1. Dairy Tee;, 2. Dairy Reducer; 3. Dairy Bend
Sizes: 1/2”OD to 4”OD (Imperial)
Thickness: 1.5mm, 2mm, 2.5mm, 3mm (Seamless and ERW)
Standard: DIN/TRICLOVER/IDF/SMS/BSP/NPT
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)
Eccentric Reducer
Eccentric reducers are more often used when the pipework lays on a pipe rack. Because of the flat side, aligning and securely mounting the pipes to the rack is easier.
Sizes: 15NB to 200NB (Nominal Bore)
Thickness: Sch 10, Sch 40, Sch 80 (Seamless and ERW)
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)
Tee
A Butt weld Tee helps create full penetration weld on three ends each 90° without any extra preparation needed for the butt weld fitting.
Sizes: 15NB to 300NB (Nominal Bore)
Thickness: Sch 10, Sch 40, Sch 80 (Seamless and ERW)
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)

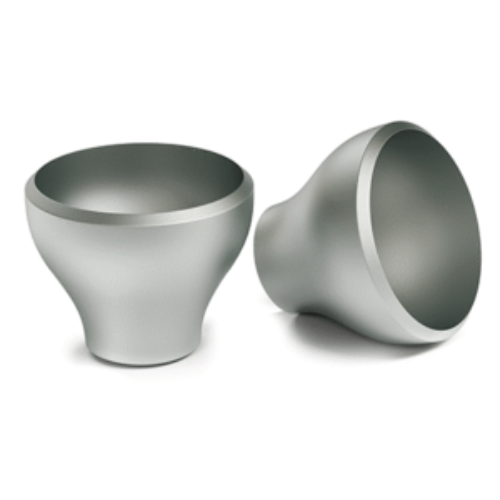

Concentric Reducer
Concentric reducers are used where the pipework is vertically installed and at the discharge side of pumps.
Sizes: 15NB to 200NB (Nominal Bore)
Thickness: Sch 10, Sch 40, Sch 80 (Seamless and ERW)
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)

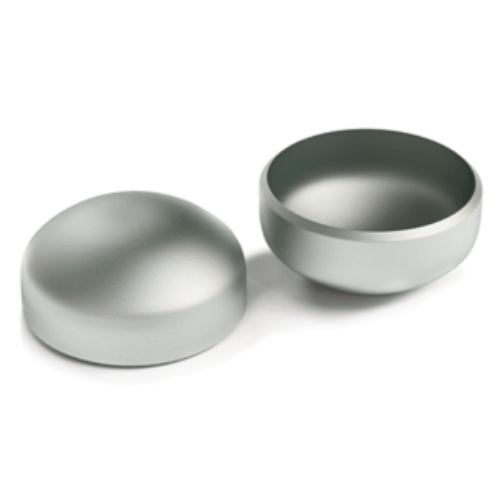

End Cap
Butt weld end caps are used to terminate vacuum tubing in vacuum piping applications. Butt weld end caps to terminate tubing.
Sizes: 15NB to 300NB (Nominal Bore)
Thickness: Sch 10, Sch 40, Sch 80, Sch 160
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)

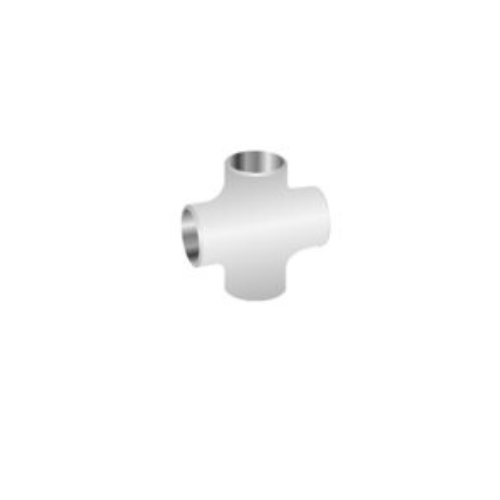

Cross
A Butt weld Cross helps create full penetration weld on all four ends every 90° without any extra preparation needed for the butt weld fitting.
Sizes: 15NB to 300NB (Nominal Bore)
Thickness: Sch 10, Sch 40, Sch 80 (Seamless and ERW)
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)

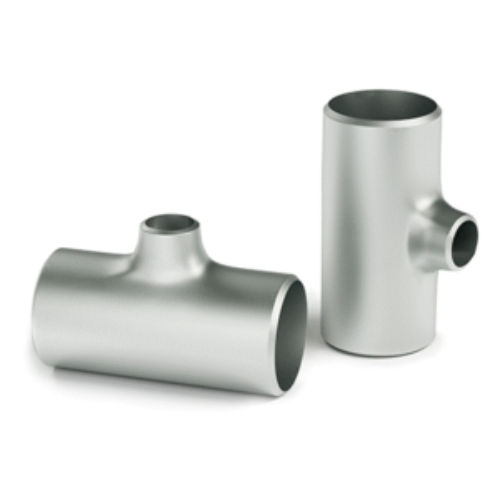

Reducing Tee
A Reducing Butt weld Tee helps create full penetration weld on three ends each 90° with smaller branch run that main run without any extra preparation needed for the butt weld fitting.
Sizes: 15NB to 300NB (Nominal Bore)
Thickness: Sch 10, Sch 40, Sch 80 (Seamless and ERW)
Material: Stainless Steel (Gr. 304, 304L, 316, 316L)
